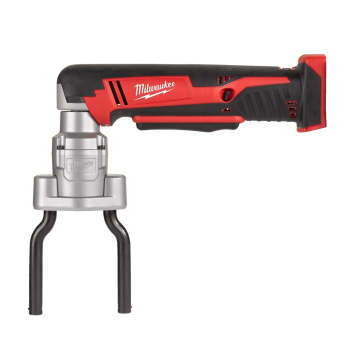

M18™ Shear Bolt Tool

(M18 BSBT)

Huge capacity up to a cable size of 1000 mm² or connector diameter of 78 mm
Outstanding power with a max torque of 100 Nm
Universal compatibility with the industry leading shear bolt lug manufacturers

What's Included

Categories:

Power Tools Specialty / Applicators

Where To Buy

Features

Huge capacity up to a cable size of 1000 mm² or connector diameter of 78 mm
Outstanding power with a max torque of 100 Nm
Universal compatibility with the industry leading shear bolt lug manufacturers
IEC-Tested, superior electrical connection integrity of lug and cable thanks to smooth tightening of the screws without an impact mechanism
Tool free and quickly adjustable retaining bolts in 360° positions
Included system attachments for optimal compatibility with 2-row shear bolt connectors
Run time to shear off up to 80 screws on one M18™ 2.0 Ah battery
Consistent speed of 60 RPM
Premium 4-pole brushed motor, REDLITHIUM™ battery pack and REDLINK™ electronic delivering the needed power, run time and durability
Flexible battery system: works with all MILWAUKEE® M18™ batteries

Range Spec

What's Included

M18 BSBT.

M18 BSBT. (1) 10 mm impact rated ½″ socket (1) 17 mm impact rated ½″ socket (1) 13 mm impact rated ½″ socket long (1) 19 mm impact rated ½″ socket long (1) 5 mm impact rated ½″ Hex socket (1) 6 mm impact rated ½″ Hex socket (1) 8 mm impact rated ½″ Hex socket (1) 6 mm impact rated ½″ Hex socket long (1) 8 mm impact rated ½″ Hex socket long (1) 33-52 mm fork attachment (1) 58-69 mm fork attachment (1)

Product Specifications

Bolt Adjustment Range (mm)

20 - 78

Max. Cable Size (mm²)

1,000

Max. torque (Nm)

100

No load speed (rpm)

Standard equipment

9 x impact rated ½″ sockets (10/ 17 mm socket, 13/ 19 mm socket long, 5/ 6/ 8 mm Hex socket, 6/ 8 mm Hex socket long), 2 x fork attachment (33-52 mm, 58-69 mm)

Tool Reception

½″ square
