M18 FUEL™ 18GA Finish Nailer

User Manual

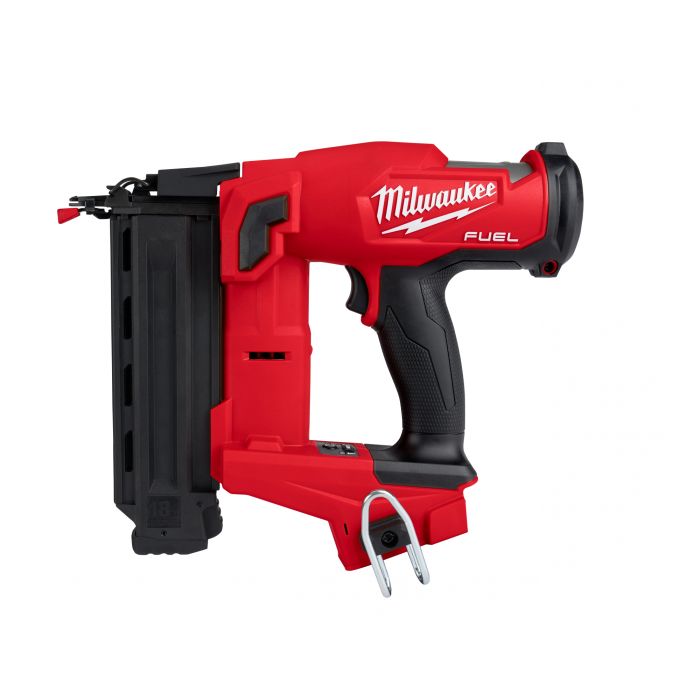

M18 FUEL™ 18GA Finish Nailer

M18 FN18GS

Best-in-class power to consistently seat nails sub-flush to the surface in hardwoods
Ready to Fire Nail Technology eliminates ramp-up time between each nail discharge
No gas cartridges and no cleaning required, designed to deliver durability and reliability to the most demanding users with very little maintenance

What's Included

Categories:

Fastening

Where To Buy

Features

Best-in-class power to consistently seat nails sub-flush to the surface in hardwoods
Ready to Fire Nail Technology eliminates ramp-up time between each nail discharge
No gas cartridges and no cleaning required, designed to deliver durability and reliability to the most demanding users with very little maintenance
Smaller nail hole, the exact size of the nail head leaving a neater finish
Different shaped noses stored on board allows the user to get the best finish no matter what the application
Small work contact bracket allows the user to fire and sink nails at a more acute angle
Tool-free, quick and easy depth adjustment to assure nails are driven sub-flush
Dry-Fire lockout stops the tool being fired when there are no nails left in the magazine
Fires up to 1200 nails per charge on a REDLITHIUM™-ION 2.0 Ah battery pack for maximum productivity
Quick access and easy clearing of jams
LED work light illuminates the work surface for better placement of nails
Flexible battery system: works with all MILWAUKEE™ M18™ batteries

Range Spec

What's Included

M18 FN18GS-0X0

HD Box (1) Work Piece Contact Tip - General Purpose (1) Work Piece Contact Tip - Larger Winged (1) Work Piece Contact Tip - Precision (1) M18 FN18GS-0 (1)

Product Specifications

Battery platform

M18™ REDLITHIUM™-ION

LED Light

Yes

Modes

Sequential / Bump

Weight with battery pack if applicable (kg)

2.9 (w/ M18B2)

Collation Angle

0°

Fastener Type

Brad

Fastener Diameter (mm)

1.02 (18GA)

Fastener Length (mm)

15 - 54

Magazine Capacity

110
