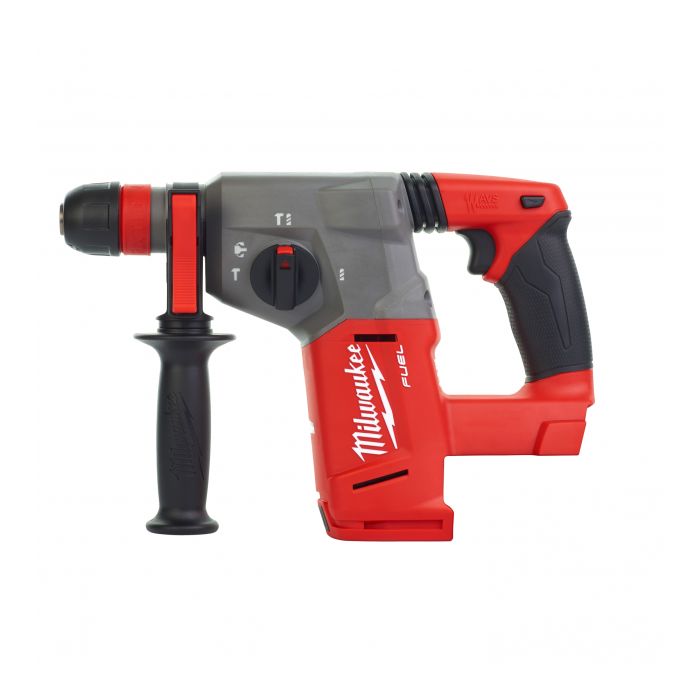

M18 FUEL™ SDS-Plus Hammer (3 Mode)

User Manual

M18 FUEL™ SDS-Plus Hammer (3 Mode)

M18 CHX

FUEL™ Technology: Delivers faster than corded speed, corded durability, and all day work on one charge.
POWERSTATE™ Brushless Motor: Provides 2.5J of impact energy, 0-1,400 RPM and 0-4,900 BPM.
REDLITHIUM™-ION Battery Packs: Provide all day work on one charge, maximum power and more recharges.

What's Included

Categories:

Concrete Drilling & Demolition

Where To Buy

Features

FUEL™ Technology: Delivers faster than corded speed, corded durability, and all day work on one charge.
POWERSTATE™ Brushless Motor: Provides 2.5J of impact energy, 0-1,400 RPM and 0-4,900 BPM.
REDLITHIUM™-ION Battery Packs: Provide all day work on one charge, maximum power and more recharges.
REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging.
AVS Anti-Vibration System: Minimises vibration for maximum comfort

Range Spec

What's Included

M18 CHX-502C

Depth Rod (1) Side Handle (1) Hard Case (1) M18 CHX-0 (1) M18B5 (2) M12-18C (1)

Product Specifications

Length (mm)

341

Battery platform

M18™ REDLITHIUM™-ION

Voltage (V)

FUEL Gauge

Yes

LED Light

Yes

No load speed (rpm)

0 - 1400

Max. drilling steel (mm)

Max. drilling wood (mm)

Tool Reception

SDS-Plus

Blow energy (J)

2.5

Max. drilling concrete (mm)

Optimised drilling capacity in concrete (mm)

Ø 6 - 20

Vibration drilling / chiselling

8.9 / 9.5

Modes

3-Mode: Rotary Hammer Hammer Only Rotation Only

Max. hammer rate (bpm)

0 - 4900

Handle Style

D-Handle

Weight with battery pack if applicable (kg)

3.5kg (5.0Ah)
