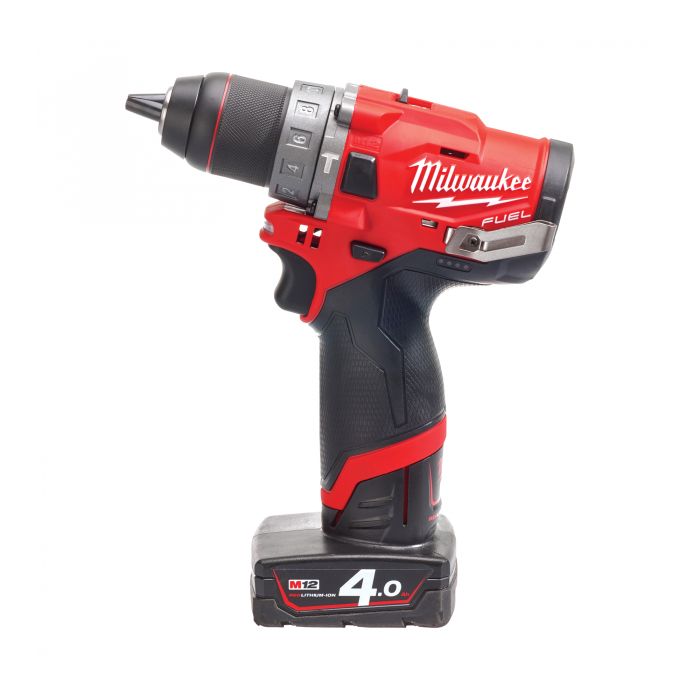

M12 FUEL™ Percussion Drill
- Most Capable 12V Percussion Drill with the power to perform a wide range of applications
- Lightest Weight in its class for tool belt portability and less fatigue in the work day
- Most Compact in its class for the best access in tight spaces
- 13mm All Metal chuck for maximum grip and bit retention
- E-Clutch for consistent repeatability in driving applications
- 1700 RPMs for faster drilling speeds
- 44 Nm of peak torque
M12 FPD-602C
M12 FPD-0
Product Specifications
Length (mm)
168
168
Battery platform
M12™ REDLITHIUM™-ION
M12™ REDLITHIUM™-ION
Voltage (V)
12
12
Speed settings
2
2
FUEL Gauge
Yes
Yes
LED Light
Yes
Yes
No load speed (rpm)
0 - 450 / 1700
0 - 450 / 1700
Chuck Type
All Metal
All Metal
Chuck Size (mm)
13
13
Max. drilling masonry (mm)
13
13
Max. drilling steel (mm)
13
13
Max. drilling wood (mm)
35
35
Max. percussion rate (bpm)
0 - 6750 / 25500
0 - 6750 / 25500
Max. torque (Nm)
44
44
Weight with battery pack if applicable (kg)
1.5kg (6.0Ah)
1.5kg (6.0Ah)
