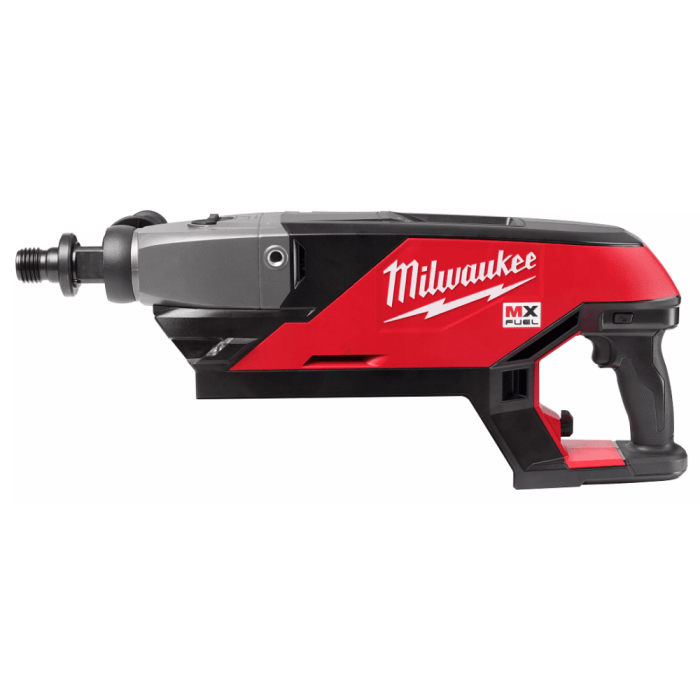

MX FUEL™ Handheld Core Drill

MX FUEL™ Handheld Core Drill

MXF DCD150

Core with confidence by delivering AC performance with a maximum core diameter capacity of 152 mm wet & dry
2 speed gearing for a wide range of applications, with laser edged speed and capacity markings into the metal body
Speed 1: up to 75 mm diameter wet & dry coring at 1600 rpm

What's Included

Categories:

Drilling

Where To Buy

Features

Core with confidence by delivering AC performance with a maximum core diameter capacity of 152 mm wet & dry
2 speed gearing for a wide range of applications, with laser edged speed and capacity markings into the metal body
Speed 1: up to 75 mm diameter wet & dry coring at 1600 rpm
Speed 2: 76 to 152 mm diameter wet & dry coring 800 rpm
Patented AUTOSTOP™ clutch provides best in class protection, preventing over rotating when losing control or in case of a stuck core
On-board level sensor guides the user to achieve a straight and accurate finish whilst horizontal drilling
On-board pressure gauge allows user to optimise drilling speed in order to get the best lifetime of machine and accessory
On-board battery gauge allows the user to monitor battery capacity during entire drilling process
Integrated water line for wet coring that is compatible with the M18™ SWITCH TANK™ interchangeable sprayer and water supply system
1 ¼″UNC + ½″G core fitting to fit most common cores, with friction plate design allowing for easy core changes
Separately available core drill stand MXF DR255TV with 60 mm collar - 60 mm mount on the core drill fits most universal core stands
MX FUEL™ next generation POWERSTATE™ brushless motor, REDLINK PLUS™ electronics and REDLITHIUM™ battery pack deliver superior performance, durability and run time in high demand applications
ONE-KEY™ tool tracking & security offers a cloud-based inventory management platform that supports both location tracking and theft prevention

Range Spec

What's Included

MXF DCD150-0C0

MXF DCD150-0C0 (1) Trigger lock-on (1) Side handle (1)

Product Specifications

Full load speed (rpm)

0 - 800/ 0 - 1600

Tool Reception

1 ¼″ UNC + ½″ G

Weight with battery pack if applicable (kg)

12.4 (MXF CP203)

Max. drilling concrete (mm)

76 - 152/ 25 - 76

No load speed (rpm)

0 - 800/ 0 - 1600

Weight (kg)

10.3
