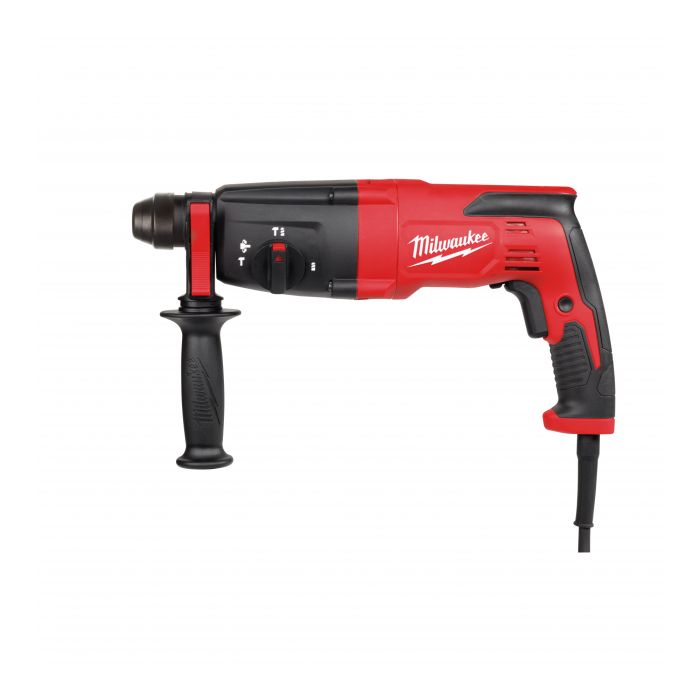

26 mm SDS-Plus 3-Mode Hammer

User Manual

26 mm SDS-Plus 3-Mode Hammer

Most compact, slimline hammer available in its class
Unmatched performance with 2.4/2.8 J blow energy and 4500/4800 bpm
Lowest vibration only 13.5 m/s²

What's Included

Categories:

Concrete Drilling & Demolition

Where To Buy

Features

Most compact, slimline hammer available in its class
Unmatched performance with 2.4/2.8 J blow energy and 4500/4800 bpm
Lowest vibration only 13.5 m/s²
Extreme MILWAUKEE™ durability thanks to integrated metal block technology
Innovative and patented internal weight reduction technology
Hammer stop function
Safety clutch protects machine and user if drill bit jams
4 m cable
X version comes with fast changing FIXTEC adaptor with keyless chuck

Range Spec

What's Included

PH 26T

Side Handle with Depth Gauge (1) PH 26T (1)

Product Specifications

Length (mm)

337

Voltage (V)

220

No load speed (rpm)

0 - 1500

Max. drilling steel (mm)

Max. drilling wood (mm)

Tool Reception

SDS-Plus

Blow energy (J)

2.4

Max. drilling concrete (mm)

Optimised drilling capacity in concrete (mm)

Ø 6 - 16

Vibration drilling / chiselling

13.6 / 11.9

Modes

3-Mode: Rotary Hammer Hammer Only Rotation Only

Max. hammer rate (bpm)

0 - 4500

Handle Style

Pistol
